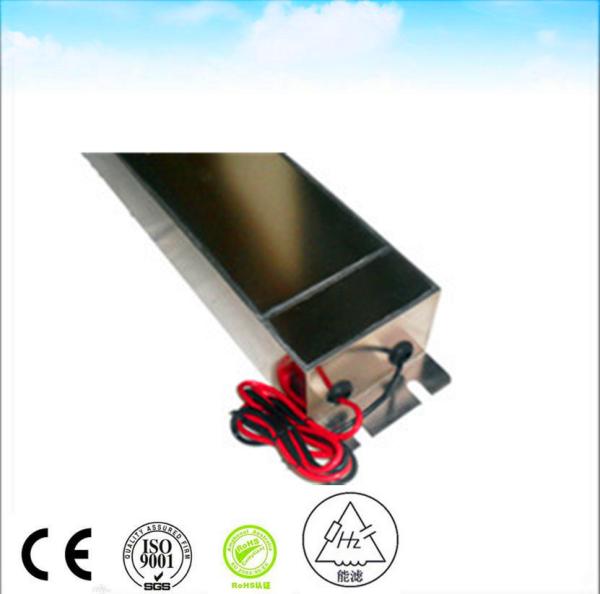

Name: Rj45 Electronics Single Phase Rfi Filter For Radio Emc Noise Filter high quality
Brand: nenglv
Price: 190.00 USD

Brand Name : nenglv

Model Number : HZ-70C-G

Place of Origin : China

MOQ : >=1 Pieces

Price : $190.00

Supply Ability : 100 Piece/Pieces per Week

Packaging Details : 1 pcs in one carton the gross weight is about 20Kg

Certification : CE RoHS

Type : EMI Filter

Transfer Function : Low Pass

Package Type : Throught Hole

Nominal Center Frequency : 50/60Hz

3dB Bandwidth : 14K

Insertion Loss : 100dB

Input Impedance : 50ohm

Stopband Attenuation : 100dB

Rated Voltage : 120/250VAC

Rated Current : 70A

Operating Frequency : 50/60Hz

Application : rf shielding room

Port : shanghai

Contact Now

250VAC 70A emi earth line filter rf shielding

The previously EMI filter installation guidelines and best practices can provide many benefits, including:

Appropriate installation helps in minimizing the propagation of and susceptibility to interference.
Helps in achieving compliance with standards and regulations which is ultimately the responsibility of the installer.
Following EMI filter installation best practices typically reduces overall costs of compliance by reducing repeated testing costs and optimizing the solution.

RATED VOLTAGE	250 VAC
RATED CURRENT	30 A
OPERATIONAL FREQUENCY	50 60 Hz
Voltage Drop	Less than 1V
Overload	140% of rated current for 15 minutes
Harmonic Distortion	Less than 2% @ full rated current
Leakage Current	≤0.2A@380/230VAC and 50Hz
Dielectric Withstanding Voltage	1000VDC (line to line) 1000VDC (line to case)
DC Insulation Resistance	As Per MIL-STD-202 Method 202
Terminal Strength	As Per MIL-STD-202 Method 211
Temperature Rise	As Per MIL-F-15733
Insertion Loss	≥100dB@14K-40GHz As Per MIL-STD-220A, Under Load Condition
Climatic Classification	25/070/2

Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
Our test equipment: LCR digital bridge/voltage proof tester/insulation resistance tester/spectrum analyzer/inductor tester/standard signal source/shield room/interference intensity tester etc
Our product: EMI filter for general purpose/EMI filter for frequency inverter/EMI filter for shielding facility/EMI filter for military application
Our advantage: high quality/high cost-effective/short lead time
Our service: all products have two years guarantee
